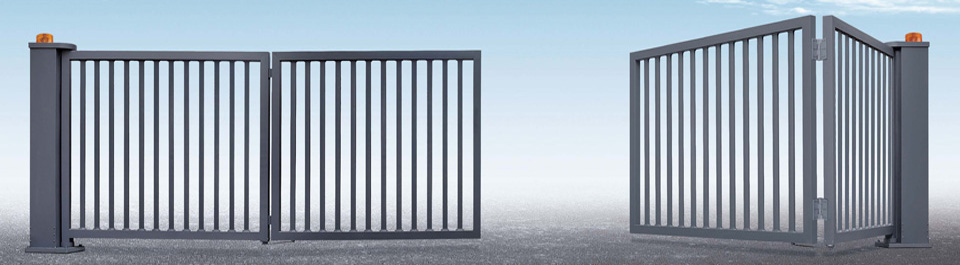

Outdoor Automatic Driveway Gate
Model Number: CF-5Gr

Main Features

  • The gate size is customized to suit any requirements, the recommendation is 1.8m height and no more than 9m length.
  • High quality material, simple structure, excellent jointing, which make the driveway gate elegant and grand.
  • No need pre-laid any parts, easy installation and low failure rate.
  • The gate is stable in suspension folding without noise, friction or abrasion.
  • The gate is with 4 motors to separately control each section and linkage control system.
  • With the overheating protection device, the motor will auto stop working when temperature is over 120 degree.
  • With electromagnetic lock, it’s very strong and locked in closed situation, and automatic unlock once getting signal of opening.
  • With Infrared anti-pinching sensors, security clutch, emergency button and warning lighting for security and safety guarantee.
  • With remote control: it’s very easy operation of opening and closing gate and distance is less than 30m.
  • The advanced microcomputer control technology will fully monitor the straight line sliding to assure of the best security in performance.
  • Suitable to such as too high or too low temperature ( from -35 to 70 degree), wind, raining, ice, snow, uneven ground or some other tough circumstances.
  • Applied to garden entrance, courtyard gate, villa front door, residential main entrance, school main gate etc.

new-design-auto-swing-gate

Gate Automation System

The automatic driveway gate is with an advanced automation system which includes 4pcs of special motor and a master control box, remote control to open and close. It is with outstanding features of anti-pinching, anti-climbing-over, working stable, low noise, thermal protection, leakage protection and so on.

folding-gate-automation-system

Gate Motor
  • DC24V, 80W × 4 Motors
  • Gear Drive, Large Torque
  • Built in Side Pillars, Low Noise
  • Auto Speed Adjustment
  • Auto Overheat Protection
Control System
  • Remote Control: less than 30 meters
  • Anti Pinching: Auto stop or go astern
  • Auto Locked: with electromagnetic lock
  • Anti Climb Over (Option)
  • Access Card Reader (Option)
  • Alarm Lighting (Option)

Packing&Shipping

  • Each automatic driveway gate is packed by one wooden crate or wooden case
  • Wooden pallet and wooden crate package will be fumigated
  • The gate will be first wrapped by bubble film and cardboard, and then fixed by wooden crate
  • It will be wooden case package by LCL shipment and we will send goods to local customs house warehouse
  • It will be wooden crate package by FCL shipment and we will contact container here in our factory for loading
  • We will offer both local and destination customs clearance documents and DHL destination documents on time

packing-for-cantilever-folding-gate
