Intelligent Cantilever Sliding Gate

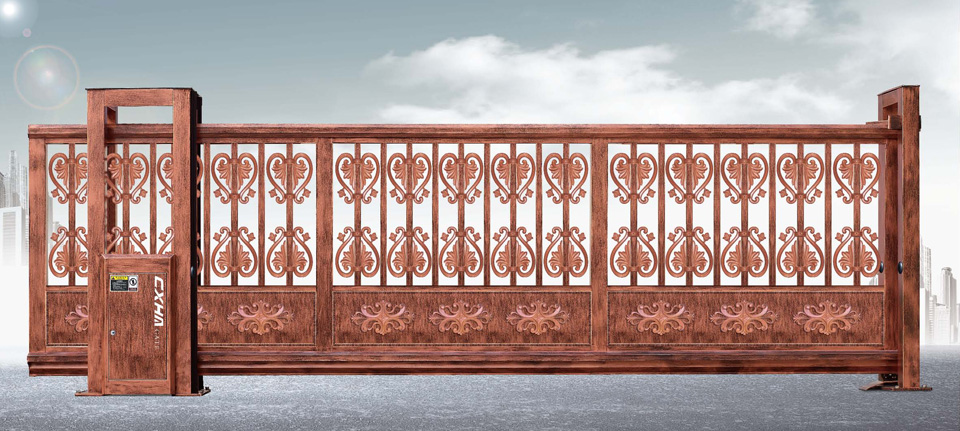

Intelligent Cantilever Sliding Gate: CH-712G

Main Features

  • The intelligent cantilever sliding gate adopts Aluminum 6063-T5 material with elegant appearance and compact structure.
  • The Gate length, height and pattern can be customized by requirement.
  • The gate is suspension sliding without any rails, it’s very easy and simple for installation and maintenance.
  • Anti-Bumping Function: In process of gate closing, if infrared detector sensed people or obstacles, the sliding gate will immediately stop to assure of security.
  • Anti-Climb-Over Alarming: If infrared detector sensed anybody to climb over gate, alarm in control cabinet will auto turn on, and the alarm can be turned off by stop-button or open-button of controller.
  • If any emergency happened, you can press Emergent ON/OFF button to cut off power and make the working gate stop immediately to assure of safety.
  • Once electric motor temperature exceeds 120 degree or the gate is working for a limited time, then the motor will auto stop working for protection and prolong its life time.
  • The gate is with desktop-controller and handheld-controller for remote control, and during the time of maintenance or power failure, gate clutch can be released and then the gate can be controlled manually.
  • The gate is with leakage protection to protect over voltage or current in control system to connect ground.
  • The gate works smoothly, stable and quiet with high security, low noise, low failure rate and long service time.
  • The gate is used to circumstances of -30°c to +70°c of high or low temperature, wind, rain, ice, snow, slope, over railway or track and even some other tough conditions.



cantilever gate detail

Gate Automation System

The intelligent cantilever sliding gate is with an advanced automation system which includes power motor built in gate box and two pieces of carriage wheel group built in the base beam (sliding track), gear rack, intelligent infrared sensors, master control box and remote controllers. It’s with outstanding features of anti-bumping, anti-climbing-over, working stable, low noise, thermal protection, leakage protection and so on.

Gate Motor and Carriage Wheels

carriage-wheels-and-motor

• Gate Motor fixed in Control Box           • Carriage Wheel Built in Base Beam

  • Motor Power: 250W
  • Voltage: AC220V±10% / AC110V±10%
  • Starting Current: 3A
  • Revolution Speed: 1400r/Min
  • Sliding Speed: 15-20 meters per minute
  • Working Noise: Less than 65db
  • The Best Environment Temperature: -30°C to 70°C
  • Thermal Protection Temperature: 120°C

Materials Specification

  • Base Beam: 137.5×104.7×5.0mm Aluminum Alloy 6063-T5
  • Upper Beam: 120x80x2.5mm Aluminum Alloy 6063-T5
  • Gate Pillar: 90x80x2.0mm Aluminum Alloy 6063-T5
  • Gate Grille: 50x30x1.3mm Aluminum Alloy 6063-T5
  • Gate Post: 90x80x2.0mm Stainless Steel
  • Decoration Parts (Gate Flower): Casting Aluminum

light-duty-series

Base Beam (Sliding Track)

Packing List / Gate

1, Gate Body (with sliding beam, guide wheels)
2, Gate Post (2pcs, a four-pillars post and a two-pillars post)
3, Carriage Wheel Group (2pcs)
4, Sliding Gate Motor
5, Gear Rack
6, Gate Control Box
7, Remote Controller (2pcs)
8, Infrared Anti-bumping Detector
9, Infrared Anti-climbing-over Alarming
10, Emgency Button
11, Opening / Closing Limit Sensor
12, Clutch Spanner
13, Pull Explosion Screws and Bolts

Packing&Shipping

  • Packing Materials: PE bubble film, cardboard carton and wooden crate if required
  • As the gate package is huge, we recommend shipping by FCL
  • We will pack each gate in parts of gate body, gate posts, electric motor, installation accessories
  • We will contact container here in our factory for loading once goods is ready
  • We will send all required documents for destination customs by DHL on time
  • We will keep tracking in the whole shipping process and inform you details

cantilever-gate-packing-and-shipping
