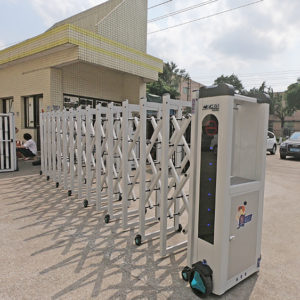

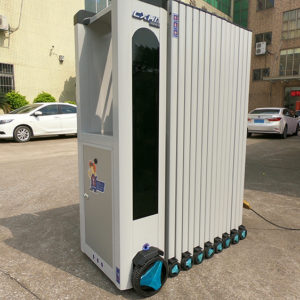

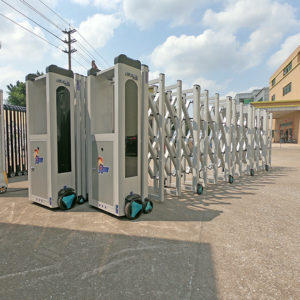

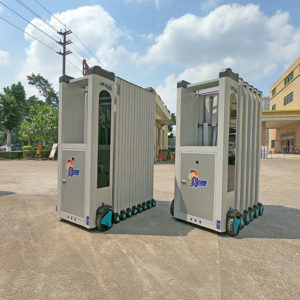

This model of automatic gates are made of industrial aluminum 6063-T5 material. It’s with special structure design, the structure is very strong and sturdy, moreover, it would be with small size in the status of automatic gates folded. So it will save more freight charge and just need a small space to park in real project.
Model Number: CA-805
- Sturdy industrial aluminum 6063-T5 material, never rust and color fading for long time usage.
- Once temperature of gate motor over 120°C, it will enter into overheat protection and re-work when temperature turn low.
- Gate wheels are made of special bearing and rubber, 2000000 times tested without abrasion.
- Any people or obstacle during automatic gates closing process, the it will auto stop at 30-40cm away to avoid collision.
- With speed clutch to switch electric control or manual control (for power failure).
- DIY installation, easy operation and maintenance
- Powder coated surface finishing, sliver color / grey color for choice
- Gate Length: Customized by your project
- Gate Height: 1600mm / 1800mm
- Vertical Pillar Materials: 60x48x1.0mm
- Cross Rod Materials: 48x36x1.0mm
- Automatic Control / Manual Control: Both available
- Surface Treatment: Powder Coated
- Sliding Speed: 18m/min
- Remote Control Distance: No more than 50m
- Power Voltage: AC220V±10% / AC110V±10%
- Power Consumption: 370W / 420W / 550W
- Power Current: 1.8A / 3.5A
- Motor Overheat Protection: 120°C
- Motor Output Speed: n=45rpm
- Gate Sliding Speed: 18m/min
- Remote Frequency: 433Hz
- Remote Control Distance: No more than 50m
- Working Temperature: -35°C—+55°C
