Model Number: CD-07Gr

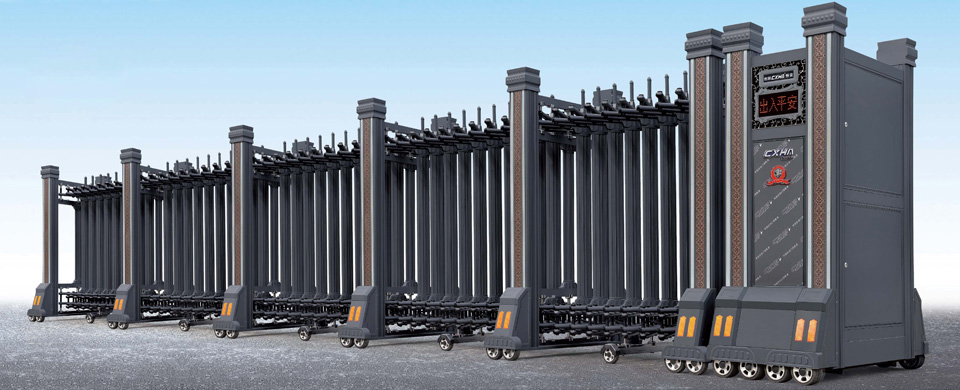

The main entrance driveway gate is with advanced and powerful motor. It’s for long time service without any structure or mechanical problem. The driveway gate is widely applied to factory, school, government, hotel, hospital, airport, railway station…
- Industrial aluminum 6063-T5 material: high hardness and tensile strength
- Motor overheat protection: auto power off if the motor upto 120°C and re-working once temperature turn low
- Wheels: made by casting aluminium and special rubber, 2000000 times tested without abrasion
- Anti-wind hooks: prevent the gate overturn by strong wind
- Anti-bumping sensor: any obstacle during closing process, the gate will auto stop at 30-40cm away to avoid collision
- Anti-climb-over alarm: alarming once anybody climbing over gate
- Caution light: it will twinkle during gate sliding
- Speed clutch: rotate the clutch to switch electric control or manual control
- Wireless remote control: with maximum 50m effective distance
- Gate sliding speed: around 18m/min
- Standard equipped 8bits static screen or optional 500bits rolling screen
- Gate Length, Height, Color can be customized
- DIY installation, easy operation and maintenance
- Gate Length: Customized by real project
- Gate Height: 1730mm as standard / by requirement
- Gate Width: 1200mm
- Wheel Base: 1135mm
- Pillar Distance: 1582mm
- Big Pillar Materials: 110x46x1.2mm
- Smaill Pillar Materials: 63×19.7×0.9mm
- Cross Parts Materials: 100×25.5×1.0mm
- Automatic Control / Manual Control: Both
- Surface Treatment: Powder Coated
- Sliding Speed: 18m/min
- Remote Control Distance: No more than 50m
- Language: English
- Power Voltage: AC220V±10% / AC110V±10%
- Power Consumption: 300W / 370W / 740W
- Power Current: 1.8A / 3.5A
- Motor Overheat Protection: 120°C
- Motor Output Speed: n=45rpm
- Gate Sliding Speed: 18m/min
- Remote Frequency: 433Hz
- Remote Control Distance: No more than 50m
- Working Temperature: -35°C—+55°C
- Each main entrance driveway gate is packed by one wooden crate or wooden case
- Wooden pallet and wooden crate package will be fumigated
- The gate will be packed fully folded onto pallet and wrapped by bubble film and then fixed by wooden crate
- It will be wooden case package by LCL shipment and we will send goods to local customs house warehouse
- It will be wooden crate package by FCL shipment and we will contact container here in our factory for loading
Wooden Pallet and Case Packing for LCL Shipment
Wooden Pallet and Bracket Packing for FCL Shipment
